Product Design
With over four decades of chassis manufacturing expertise, ALF extends its capabilities into dedicated automotive product design. Merging product and process engineering, ALF partners with OEMs to bring real-world manufacturing intelligence to every engineering decision.
Start Your ProjectALF Engineering’s Product Engineering Division is built to support OEMs across the complete lifecycle of chassis, suspension, and structural system development. Backed by over four decades of manufacturing expertise, ALF combines practical engineering knowledge with modern 3D CAD design and CAE simulation capabilities to deliver optimized, production-ready solutions.
With a strong foundation in process understanding, consistent quality, and frugal engineering, ALF enables faster vehicle development cycles, cost-efficient designs, and a seamless transition from initial concept to full-scale manufacturing.
From Concept to Production
A proven end-to-end chassis engineering approach ensuring performance, manufacturability, and faster time to market.
STEP 1
Defining architecture and design direction.
Analyse target structural performance through Structural CAE Analysis.
Freeze engineering targets and finalise concept direction.
Develop conceptual 3D CAD Models based on packaging and vehicle data.
STEP 2
Detailed CAD design, simulation, and validation.
3D CAD Development and GD&T (Geometric Dimensioning & Tolerancing) definition.
Design Failure Mode and Effects Analysis (DFMEA).
Design Verification Plan & Report (DVP&R) execution.
STEP 3
Ensuring manufacturability, tool feasibility, and cost efficiency.
Process flow design and stamping/forming feasibility validation.
Process Failure Mode and Effects Analysis (PFMEA).
Design for Manufacturability (DFM) and overall cost optimisation.
STEP 4
Prototype. Test. Validate. Launch.
Prototype manufacturing and fixture development.
Physical structural testing and durability validation.
Production Part Approval Process (PPAP) submission for series launch.
Analyse target structural performance through Structural CAE Analysis.
Freeze engineering targets and finalise concept direction.
Develop conceptual 3D CAD Models based on packaging and vehicle data.
Speed

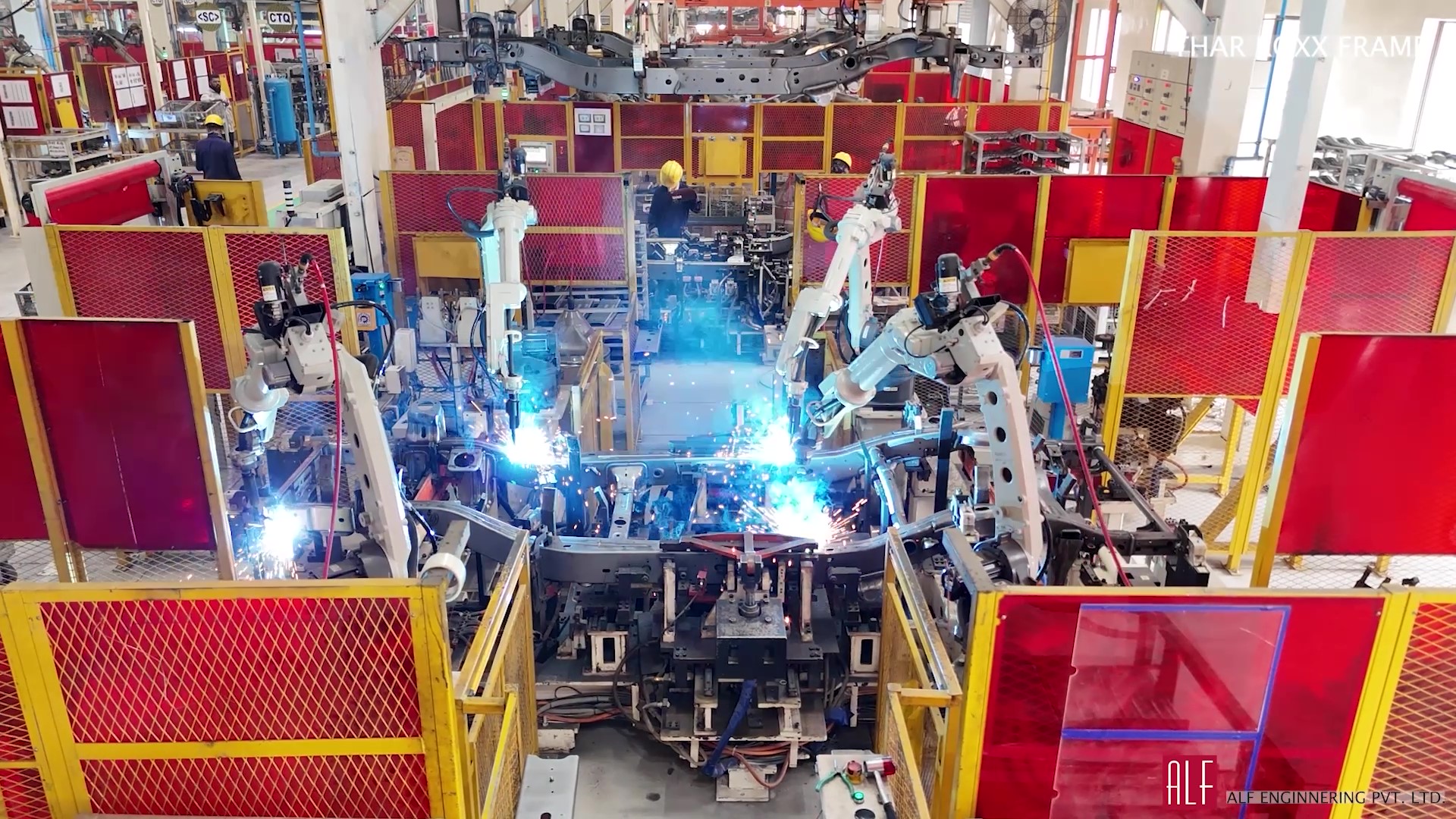

Dedicated facility for rapid prototype validation and performance assurance.
Precision
Design accuracy & part optimisation using CAE tools like Altair's HyperForm & Forming Suite.
Spends
Engineering decisions aligned to optimise material usage, streamline processes & reduce overall cost.
ALF Engineering supports the design and development of a wide range of chassis frames, suspension modules, and structural assemblies.

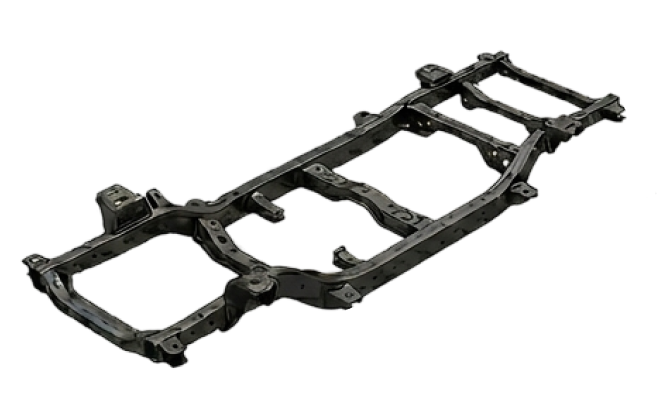

Full Ladder Frames

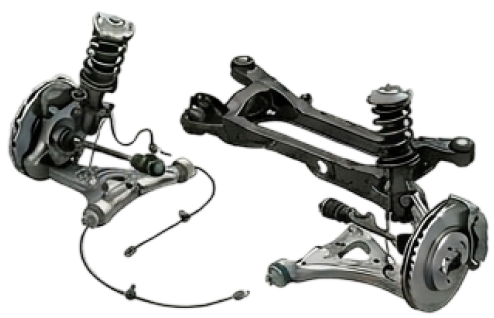

Complete Corner Modules

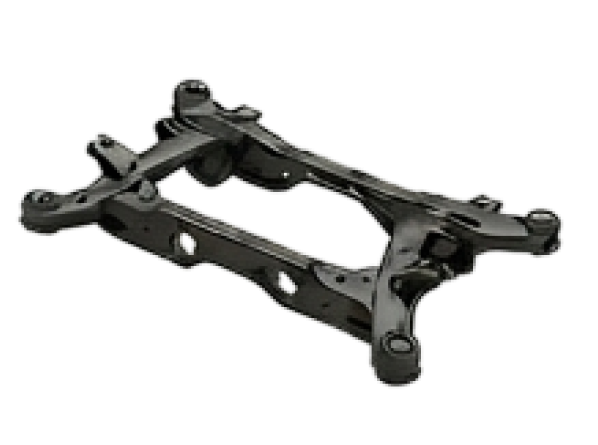

Front & Rear Subframes
Complete Corner Modules

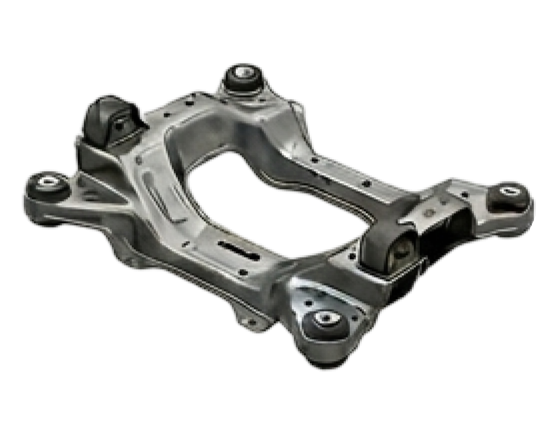

Hydroformed Engine Cradles
Complete Corner Modules
Complete Corner Modules
Complete Corner Modules

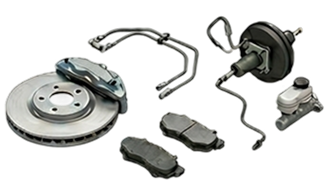

Suspension Arms, Links & Brake Components

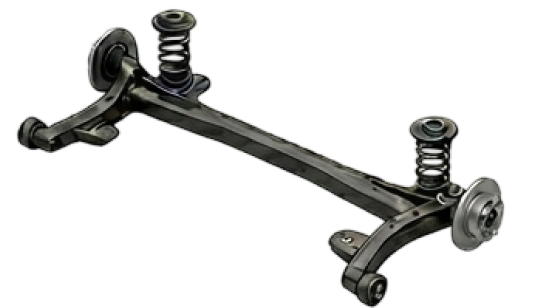

Rear Twist Axles

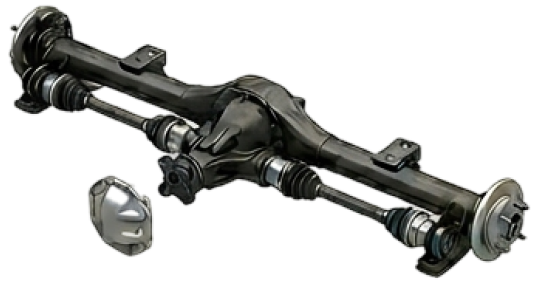

Drive Axle Beam Assemblies
Complete Corner Modules
Cross Car Beam (CCB) Assemblies
Complete Corner Modules
Brake & Clutch Pedal Assemblies
Complete Corner Modules
Mechanical Parking Brake Levers & Systems
Complete Corner Modules
ALF's Product Engineering Division operates from a dedicated design centre in Nashik, supporting OEM vehicle programs across India and global markets.
Data-driven manufacturing with real-time visibility across manufacturing processes.
IoT Connectivity
Real-time data extraction from machines across every production stage, enabling instant visibility and faster decisions.
Quality Inspection
Digitized inspection modules track and validate every chassis at each stage, ensuring no product leaves the line below standard.
ERP Integration
Integration with SAP ERP seamlessly connects the shop floor and back office - from production orders to quality records.
Production Monitoring
Live production monitoring that turns real-time data into smarter, faster manufacturing decisions.
Real-time data extraction from machines across every production stage, enabling instant visibility and faster decisions.
